Writing your first session

In this tutorial you build a small application: a simulated motor stage, a button that moves it, and a label that shows where it is. It needs no hardware, and it continues from Installation.

First you show the stage in a window, and then you make the button move it. Along the way you write one of each of the three kinds of component, and the session that makes them and holds them together.

Before you start

What you need

The project folder of Installation, and nothing else.

In the project folder, make an empty file called first_session.py. Start it with these imports:

from __future__ import annotations

from collections.abc import Iterator
from functools import cached_property

from bluesky.protocols import Reading
from ophyd_async.core import (
    MovableLogic,
    StandardMovable,
    StandardReadable,
    soft_signal_rw,
)
from psygnal import Signal
from qtpy.QtWidgets import QFormLayout, QLabel, QPushButton, QWidget

from redsun import AsDevice, AsPresenter, AsView, DeviceMapping, Link, Placement, slot
from redsun.qt import Dock, QtSession

1. Write the device

A device describes one piece of your setup, which here is a stage with a position. Since you have no hardware, this stage keeps its position in memory. Add it below the imports:

class MyStage(StandardReadable, StandardMovable[float]):
    def __init__(self, name: str = "", *, units: str = "mm") -> None:
        with self.add_children_as_readables():
            self.position = soft_signal_rw(float, units=units)
        super().__init__(name=name)

    @cached_property
    def movable_logic(self) -> MovableLogic[float]:
        return MovableLogic(setpoint=self.position, readback=self.position)

StandardReadable and soft_signal_rw come from ophyd-async, the library redsun uses for devices. soft_signal_rw makes a device signal that keeps its value in memory.

With StandardReadable alone, the stage would only be a value you can read and write. StandardMovable turns it into something that moves. Its movable_logic names two signals: the setpoint, which you write to move the stage, and the readback, which says where the stage is. This stage uses one signal for both. In return, the stage answers the same methods as every motor in ophyd-async:

  • set moves it, and finishes when the move does;
  • locate says where it was sent and where it is;
  • stop stops it, and subscribe follows its position.

Code that calls those methods, rather than an attribute called position, works with this stage and with any real motor you put in its place. That includes bluesky plans that move a device, and the positioner redsun offers, which the last tutorial uses without changing the stage.

A movable device reports its readback under its own name. When you read stage, its position comes back under the key stage, not position.

2. Write the view

A view is what the user of the application sees and touches. Add this one below the class MyStage. For each stage it hears from, it draws a row with a button and a label:

class StageView(QWidget):
    placement: Placement = Dock("left")
    sig_nudge = Signal(str)

    def __init__(self, name: str, parent: QWidget) -> None:
        super().__init__(parent)
        self.name = name
        self.rows = QFormLayout(self)
        self.labels: dict[str, QLabel] = {}

    def add_row(self, stage: str) -> None:
        button = QPushButton(f"Nudge {stage}")
        button.clicked.connect(lambda: self.sig_nudge.emit(stage))
        self.labels[stage] = QLabel()
        self.rows.addRow(button, self.labels[stage])

    @slot
    def show_reading(self, reading: dict[str, Reading[float]]) -> None:
        for stage, entry in reading.items():
            if stage not in self.labels:
                self.add_row(stage)
            self.labels[stage].setText(f"position: {entry['value']}")

placement says where the view goes, which here is docked on the left of the window. sig_nudge is a signal: when you press a stage's button, the view sends it with the name of that stage. show_reading is a slot, a method something else can trigger. It receives a reading: a dictionary whose key is the name a device reports and whose entry holds the value. For a stage, the key is the stage's own name, as step 1 explained.

You never call the constructor yourself, because the session does it for you. The session passes every view its name, and its parent, which is the main window. Every component stores the name it receives as self.name, as StageView does.

3. Write the session

Add a session below the view. For now it holds the stage and the view, and sends the position of the stage to the view:

class FirstSession(QtSession):
    stage: AsDevice[MyStage]
    stage_view: AsView[StageView]

    def wire(self) -> Iterator[Link]:
        yield self.stage.position, self.stage_view.show_reading


if __name__ == "__main__":
    FirstSession().run()

Each line in the class body declares a component, with its name on the left and its layer and class on the right. wire yields the links of the session, each one written as what sends, then the slot that receives.

Run the script:

uv run first_session.py

The terminal tells you what the session built:

Session built: 1/1 devices, 0/0 presenters, 1/1 views

In your terminal, the line starts with the time and the word INFO, which these pages leave out.

A window opens with the view docked on the left:

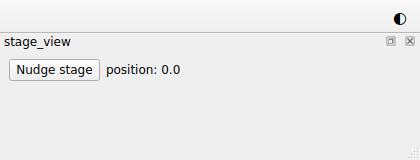

The first session's window, with a row for the stage: a Nudge button and its position

The view has one row, for stage, before you've pressed anything. A link from a device signal sends the value the signal has when the session makes the link, and then every new value. So show_reading received the stage's position while the session started, and added the row for it. Press the button: nothing happens yet, since nothing listens to it. Close the window.

4. Write the presenter

A presenter holds the application logic: what the application does, and when. Add this one between the classes MyStage and StageView. It moves a stage by one step:

class StagePresenter:
    def __init__(self, name: str, *, devices: DeviceMapping, step: float = 1.0) -> None:
        self.name = name
        self.stages = devices
        self.step = step

    @slot
    async def nudge(self, stage: str) -> None:
        position = await self.stages[stage].position.get_value()
        await self.stages[stage].position.set(position + self.step)

The session finds a value for each parameter of the constructor. Because devices is a DeviceMapping, it receives every device of the session, by name. Components explains the rules the session follows.

nudge is a slot that takes the name of a stage. It's async because a device takes time to answer.

Note

An editor that checks types underlines the two lines of nudge. devices holds devices of every kind, so the editor can't tell that this one has a position. The script runs all the same, and Describing a device with a protocol fixes it.

5. Connect them

Add the highlighted lines to the session. They declare the presenter, and add the link that sends each press of a button to it:

class FirstSession(QtSession):
    stage: AsDevice[MyStage]
    stage_ctrl: AsPresenter[StagePresenter]
    stage_view: AsView[StageView]

    def wire(self) -> Iterator[Link]:
        yield self.stage_view.sig_nudge, self.stage_ctrl.nudge
        yield self.stage.position, self.stage_view.show_reading


if __name__ == "__main__":
    FirstSession().run()

The view knows nothing about the presenter, and the presenter knows nothing about the view, so it's the session that joins them. A presenter and a view written to work together like this are called a stack, and the last tutorial swaps this one for a stack redsun ships.

Run the script again:

uv run first_session.py

Session built: 1/1 devices, 1/1 presenters, 1/1 views

Press the button: the position counts up by one each time.

6. Change a setting without touching the code

Make a file called session.yaml in the project folder, beside the script:

session: first-session

presenters:
  stage_ctrl:
    step: 0.5

The first line gives the session a name, and the rest gives a value to the step parameter of the stage_ctrl component.

To tell the session to read the file, add this line to the class FirstSession, as its first line:

config = "session.yaml"

Run the script again. Each press now moves the stage by 0.5, because the session found step in the file and passed it to the presenter's constructor.

The session looks for the file in the folder you run the command from, which is the project folder. Keep both the file and the line, since the next tutorials count on them.

The whole script

The script leaves out the config line of step 6.

"""The session built in the "Writing your first session" tutorial."""

from __future__ import annotations

from collections.abc import Iterator  # noqa: TC003
from functools import cached_property

from bluesky.protocols import Reading  # noqa: TC002
from ophyd_async.core import (
    MovableLogic,
    StandardMovable,
    StandardReadable,
    soft_signal_rw,
)
from psygnal import Signal
from qtpy.QtWidgets import (
    QFormLayout,
    QLabel,
    QPushButton,
    QWidget,
)

from redsun import (
    AsDevice,
    AsPresenter,
    AsView,
    DeviceMapping,
    Link,
    Placement,
    slot,
)
from redsun.qt import Dock, QtSession


class MyStage(StandardReadable, StandardMovable[float]):
    def __init__(self, name: str = "", *, units: str = "mm") -> None:
        with self.add_children_as_readables():
            self.position = soft_signal_rw(float, units=units)
        super().__init__(name=name)

    @cached_property
    def movable_logic(self) -> MovableLogic[float]:
        return MovableLogic(setpoint=self.position, readback=self.position)




class StagePresenter:
    def __init__(self, name: str, *, devices: DeviceMapping, step: float = 1.0) -> None:
        self.name = name
        self.stages = devices
        self.step = step

    @slot
    async def nudge(self, stage: str) -> None:
        position = await self.stages[stage].position.get_value()
        await self.stages[stage].position.set(position + self.step)




class StageView(QWidget):
    placement: Placement = Dock("left")
    sig_nudge = Signal(str)

    def __init__(self, name: str, parent: QWidget) -> None:
        super().__init__(parent)
        self.name = name
        self.rows = QFormLayout(self)
        self.labels: dict[str, QLabel] = {}

    def add_row(self, stage: str) -> None:
        button = QPushButton(f"Nudge {stage}")
        button.clicked.connect(lambda: self.sig_nudge.emit(stage))
        self.labels[stage] = QLabel()
        self.rows.addRow(button, self.labels[stage])

    @slot
    def show_reading(self, reading: dict[str, Reading[float]]) -> None:
        for stage, entry in reading.items():
            if stage not in self.labels:
                self.add_row(stage)
            self.labels[stage].setText(f"position: {entry['value']}")




class FirstSession(QtSession):
    stage: AsDevice[MyStage]
    stage_ctrl: AsPresenter[StagePresenter]
    stage_view: AsView[StageView]

    def wire(self) -> Iterator[Link]:
        yield self.stage_view.sig_nudge, self.stage_ctrl.nudge
        yield self.stage.position, self.stage_view.show_reading


if __name__ == "__main__":
    FirstSession().run()

What you built

You built a window that shows a simulated stage and moves it. It's made of a device, a presenter and a view, which a session built and connected for you. The size of each step comes from a file you can change without opening the script.
